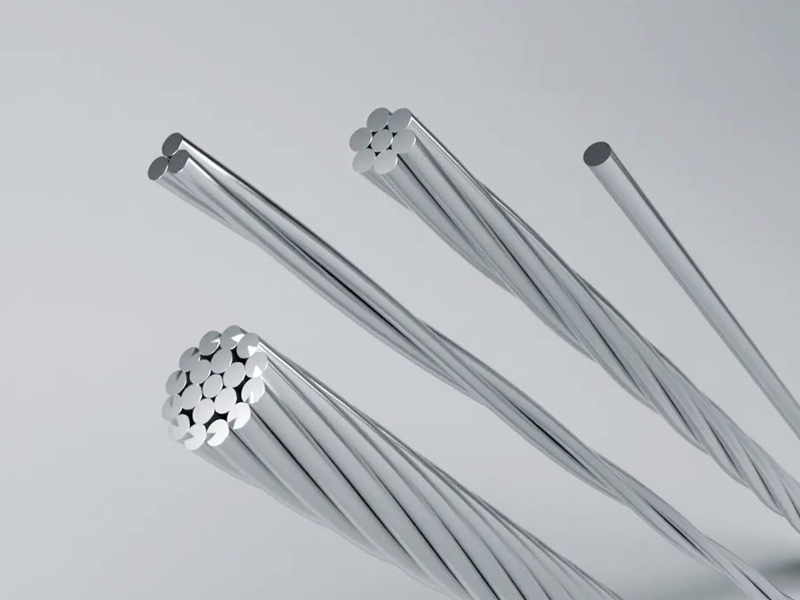

Galvanized Steel Strand
Our galvanized steel strand products have excellent mechanical properties. Vertical hot-dip galvanizing technology ensures coating thickness. We employ the most experienced, talented, and licensed engineers in the industry to design solutions for your application.
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Our galvanized steel strand products have excellent mechanical properties. Vertical hot-dip galvanizing technology ensures coating thickness. We employ the most experienced, talented, and licensed engineers in the industry to design solutions for your application.
Advantages Of Galvanized Steel Strands
1. Bright surface;
2. Excellent corrosion resistance;
3. Clean and firm hot-dip galvanized layer;
4. Excellent durability and fatigue resistance;
5. Gaoxian specializes in the manufacture of galvanized steel strands and exports them to more than 40 countries or regions;
Product Parameters
Specifications Of Galvanized Steel Strand
| Material | high carbon steel |
| Galvanized steel wire size | φ1.44mm-4.770mm |
| Strand size | 7×（1.44-4.2 mm）;19×（1.44-3.5mm）;37×（1.44-3.5mm） |
| Tensile strength | different Grade from min.1470 N/mm2 to min.1960N/mm2 |
| Zinc coating | According to ASTM A475 Class A
Meets ASTM Specifications A475 or A363 or ASTM B498 or BS EN 50189 |
| ISO management system certification | ISO9001:2008, ISO18001,ISO14001 |
Zinc Coated Steel Wires Strand (ASTM A 475)
This specification covers five grades of zinc-coated steel wire strands, for use as guy, messengers and span wires.
Physical Properties Of Zinc Coated Steel Wires Strand
| Nominal diameter of Strand. In (mm) | Number of Wires in Strand | Nominal diameter of Coated Wires in Strand. (mm) | Approximate Weight of Strand(kg/304.8m) | Minimum Breaking Strength of Strand (KN) | ||||
| Utilities Grade | Common Grade | Siemens Martin Grade | High Strength Grade |
Extra High Strength Grade | ||||
| 3/16 (4.76) | 7 | 1.57 | 33 | ----- | 5.115 | 8.452 | 12.677 | 17.748 |
| 7/32 (5.56) | 3 | 2.64 | 40 | ----- | 6.228 | 10.409 | 15.569 | 21.796 |
| 7/32 (5.56) | 7 | 1.83 | 44 | ------ | 6.850 | 11.387 | 17.126 | 24.020 |
| 1/4 (6.35) | 7 | 2.03 | 55 | ------ | 8.452 | 14.012 | 21.129 | 29.581 |
| 9/32 (7.14) | 7 | 2.36 | 74 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
| 5/16 (7.94) | 7 | 2.64 | 93 | ----- | 14.234 | 23.798 | 35.586 | 49.820 |
| 3/8 (9.52) | 7 | 3.05 | 124 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 |
| 7/16 (11.11) | 7 | 3.68 | 181 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
| 1/2 (12.70) | 7 | 4.19 | 234 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
| 1/2 (12.70) | 19 | 2.54 | 229 | ------ | 33.895 | 56.492 | 84.961 | 118.768 |
| 9/16 (14.29) | 19 | 2.87 | 289 | ------- | 42.881 | 71.616 | 107.202 | 149.905 |
| 5/8 (15.88) | 19 | 3.18 | 361 | ------- | 48.930 | 80.513 | 124.995 | 178.819 |
| 3/4 (19.05) | 19 | 3.81 | 524 | ------- | 71.172 | 116.643 | 181.487 | 259.331 |
Nominal Diameters And Minimum Weights Of Coating For Zinc-Coated Steel Wires
| Diameter(mm) | 1.57 | 1.65 | 1.83 | 2.03 | 2.36 | 2.54 | 2.64 | 2.77 | 3.05 | 3.18 | 3.30 | 3.63 | 3.68 | 3.81 | 4.09 | 4.19 | 4.50 | 4.55 |
| Zinc Coated(g/m²) | 153 | 153 | 153 | 183 | 214 | 214 | 244 | 244 | 259 | 259 | 259 | 275 | 275 | 275 | 275 | 275 | 275 | 275 |
Raw Material Of Galvanized Steel Strand Chemical Composition
Our raw material is high quality carbon steel hot rolled wire rod according to the standard GB/T4354-2008 .
The chemical composition of the steel conforms to the GB/T699-1999 standard.
| Grade | Chemical composition table% | ||||
| C | Si | Mn | P | S | |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.5-0.80 | ≦0.035 | ≦0.035 |
| 60 | 0.57-0.65 | 0.17-0.37 | 0.5-0.80 | ≦0.035 | ≦0.035 |
| 65 | 0.62-0.70 | 0.17-0.37 | 0.5-0.80 | ≦0.035 | ≦0.035 |
