Medium Voltage Mining Cable Type SHD-GC
Applications： Type SHD-GC is a heavy-duty trailing cable where flexibility and maximum protection is required. For use with mobile, reeling, o ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Applications：
Type SHD-GC is a heavy-duty trailing cable where flexibility and maximum protection is required. For use with mobile, reeling, or stationary mining equipment, continuous mining machines, longwall mining systems, and blast hole drillers. It is also an excellent choice for shovels, draglines, dredges, cranes and marine shore-to-ship power supplies, and anytime extra-durable, flexible cable is required. Suitable for continuous submersion in water. Ground check conductor provides fail-safe ground monitoring. Embossed print legend for easy cable identification. Cold Bend and Impact Tested to -50°C.
Standard：
ICEA S-75-381

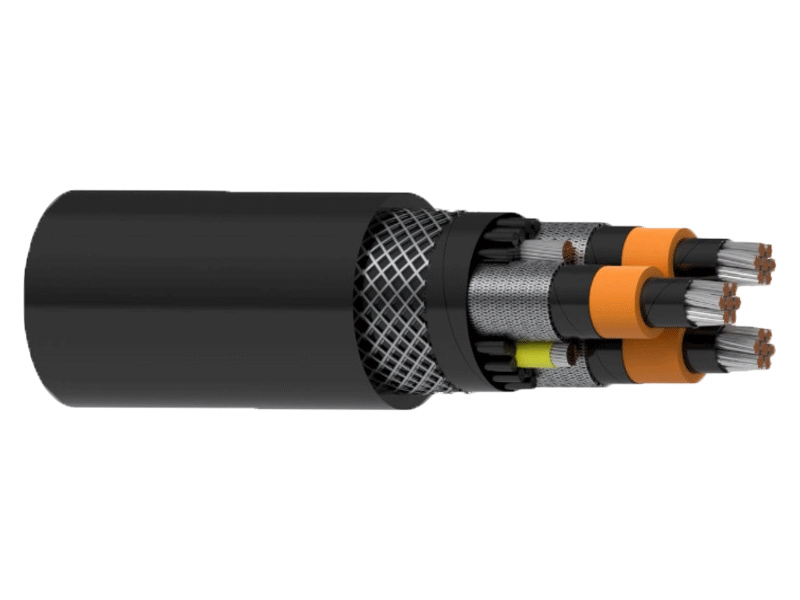

Construction：
1.Conductor: Flexible Annealed Tinned Stranded Copper
2.Separator Tape: Semi-conducting tape
3.Conductor Shield: Semi-conducting compound
4.Insulation: Ethylene Propylene Rubber (EPR) 100% Insulation Level
5.Insulation Shield: Semi-conducting compound
6.Braid Shield: Tin coated, soft drawn, annealed, copper braid shield (60% minimum coverage), combined with color coded nylon (black, white, red) with a 40% maximum coverage
7.Ground Check Conductor: Flexible Annealed Tinned Stranded Copper with Yellow Ethylene Propylene Rubber (EPR) insulation
8.Ground Conductors: Two uninsulated, tin coated, soft drawn, annealed, rope stranded, flexible lay copper
9.Inner Jacket: Black, extra heavy-duty modified integral fill flame resistant, thermosetting Chlorinated Polyethylene
10.Reinforcement: Reinforcing twine applied between the two jacket layers
11.Outer Jacket: Black, extra heavy-duty, flame resistant, thermosetting Chlorinated Polyethylene (CPE). Other colors available
Product Parameters
| Size | 15kV Cable Data Sheet | Approx. Weight | ||||||
| Cond.
Number |
Cond.
Strands |
Insulation
Thickness |
Ground | Ground
Check Size |
Jacket
Thickness |
Approx.
OD. |
||
| AWG/
Kcmil |
No. | No. | mm | No. x
AWG |
AWG | mm | mm | Kg/km |
| 1/0 | 3 | 273 | 5.3 | 2 x 4 | 6 | 6.3 | 67 | 6,200 |
| 2/0 | 3 | 324 | 5.3 | 2 x 3 | 8 | 6.6 | 69 | 6,900 |
| 4/0 | 3 | 532 | 5.3 | 2 x 1 | 6 | 6.7 | 79 | 9500 |
| 350 | 3 | 855 | 5.5 | 2 x 2/0 | 6 | 7.1 | 87 | 12,340 |
