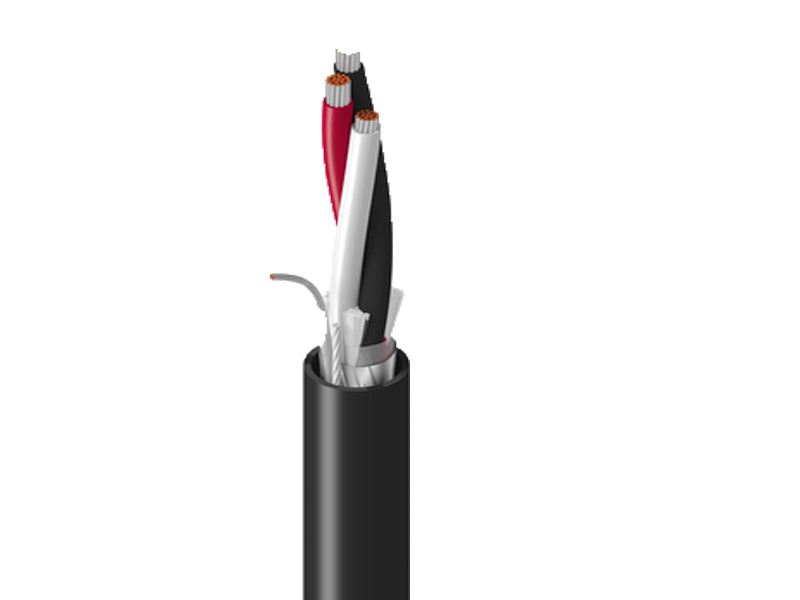

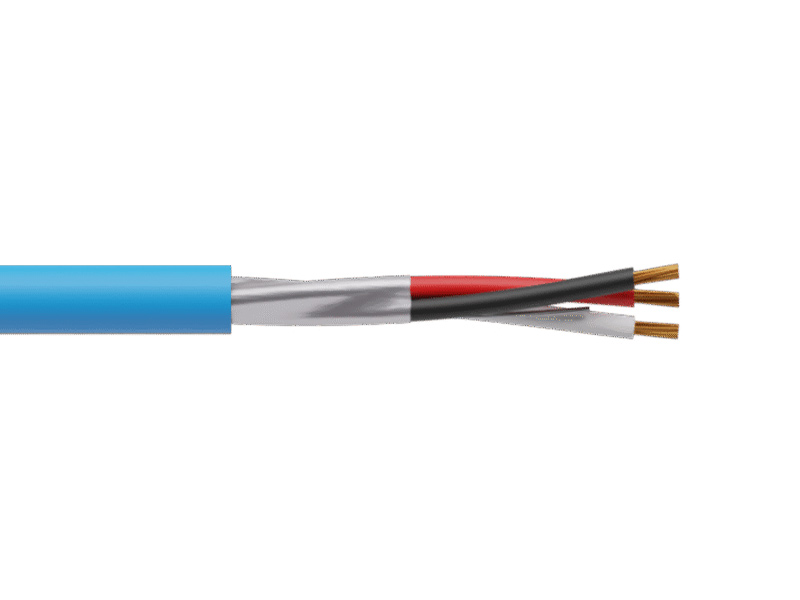

1 Triad Instrumentation Cable Al-PET Tape Shield
Application： Instrument cables are cables specifically designed for signal transmission and control lines in instruments and are suitable for ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Instrument cables are cables specifically designed for signal transmission and control lines in instruments and are suitable for low voltage environments. They are used to connect instruments and control equipment in the industrial field to ensure accurate signal transmission and reliable control. The cable's structural design and material selection give it excellent tensile strength, making it adaptable to various working environments. The cable is highly reliable and can operate stably for a long time.
Standard：
IEC 60228 , EN 50288
Construction：
1.Conductor：Plain annealed Copper, Class 2.
2.Insulation：Cross-linked Polyethylene (XLPE)
3.Filler：Non-hygroscopic material, If necessary
4.Overall Shield：Aluminum foil polyester tape with tinned copper drain wire
5.Outer Sheath：Polyvinyl chloride (PVC), Material can be low smoke halogen free, flame retardant, etc.
Temperature characteristics:
Conductor operating temperature: -20℃ ~ 80℃
Min. temperature laying condition: 0℃
Electrical Characteristics:
Rated voltage: 500V
Color:
Insulation: Black, White, Red Core
Outer sheath: Black or according to customer requirements
Product Parameters
| Number of pairs* Number of cores* Cross section | Cable Data Sheet | Approx. Weight | ||||
| CU Conductor | Insulation | Outer Sheath | Approx. Overall Dia. | |||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | |||
| mm2 | No.s | mm | mm | mm | mm | kg/km |
| 1 x 3 x 0.50 | 7 | 0.9 | 0.6 | 1.4 | 8.06 | 82.9 |
| 1 x 3 x 0.75 | 7 | 1.11 | 0.6 | 1.4 | 8.51 | 95.2 |
| 1 x 3 x 1.50 | 7 | 1.56 | 0.6 | 1.4 | 9.48 | 127.4 |
| 1 x 3 x 2.50 | 7 | 2.01 | 0.7 | 1.4 | 10.89 | 174.8 |
