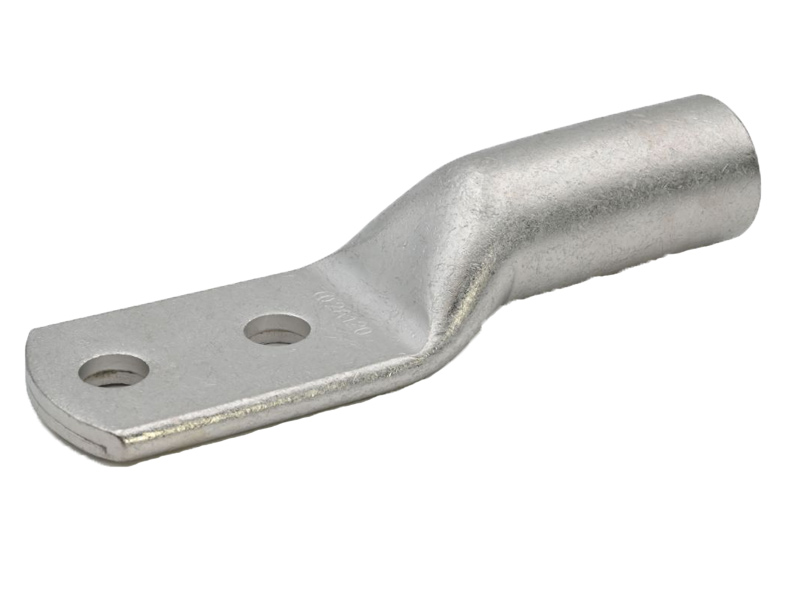

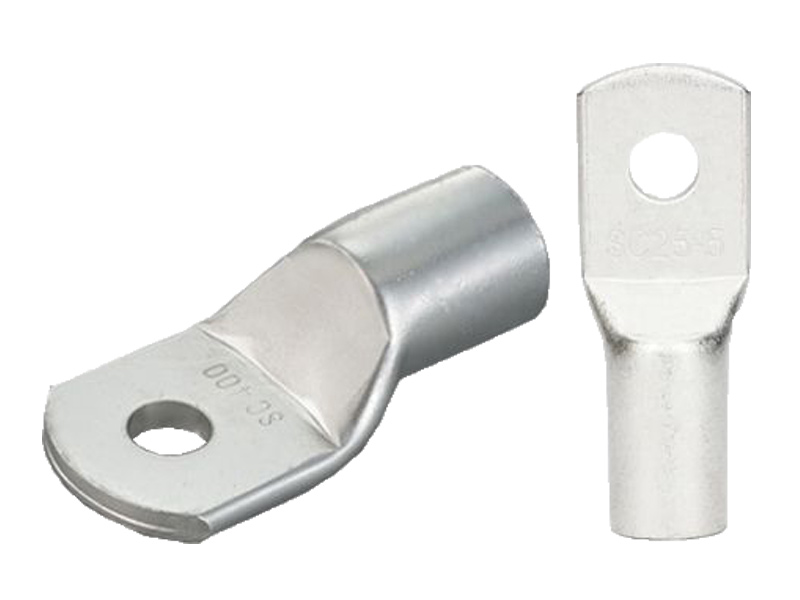

Cable Terminals Cable Lugs Tinned Copper Cable Accessories
Application： Commonly used for cable end connections and splices, it provides a stronger and safer connection between cables and electrical ap ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Commonly used for cable end connections and splices, it provides a stronger and safer connection between cables and electrical appliances. It is a commonly used material for construction, power equipment, and electrical connections. The product has a good appearance and specifications, excellent conductivity, and is safe..
Material：Copper
Content：Copper above 99.9%
Plating：Tin

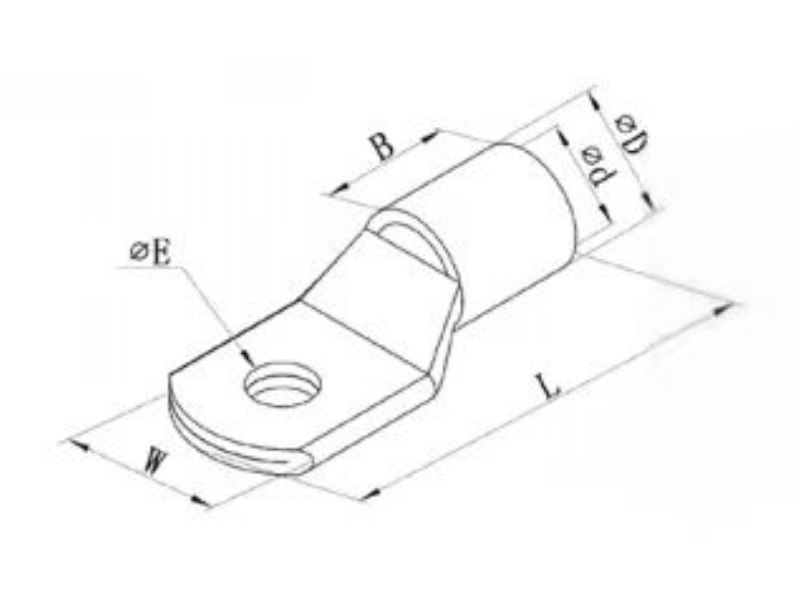

Product Parameters
| Size | DIMENSION （mm） | WIRE RANGE
AWG / Mm2 |
|||||
| φE | φD | φd | W | B | L | ||
| SC 1.5 | 3.2 | 3.7 | 1.8 | 8 | 5 | 16 | 22-16AWG / 0.5-1.5 mm2 |
| SC 2.5 | 3.2 | 4 | 2.4 | 8 | 7 | 18 | 16-14 AWG / 1.5-2.5 mm2 |
| SC 4 | 4.2 | 4.8 | 3.1 | 10 | 7 | 20 | 14-12 AWG / 2.5-4 mm2 |
| SC 6 | 4.2 | 5.5 | 3.8 | 10 | 9 | 24 | 12-10 AWG / 4-6 mm2 |
| SC 10 | 4.2 | 6.2 | 4.5 | 12 | 9 | 25 | 8 AWG / 10 mm2 |
| SC 16 | 5.2 | 7.1 | 5.4 | 12 | 12 | 30 | 6 AWG / 16 mm2 |
| SC 25 | 4.3 | 8.8 | 6.8 | 13 | 12 | 33 | 4 AWG / 25 mm2 |
| SC 35 | 5.2 | 10.6 | 8.2 | 16 | 14 | 38 | 2 AWG / 35 mm2 |
| SC 50 | 6.5 | 12.4 | 9.5 | 17.8 | 16 | 45 | 1/0 AWG / 50 mm2 |
| SC 70 | 6.5 | 14.7 | 11.2 | 21 | 20 | 52 | 2/0 AWG / 70 mm2 |
| SC 95 | 6.5 | 17.4 | 13.5 | 25 | 23 | 58 | 3/0 AWG / 95 mm2 |
| SC 120 | 6.5 | 19.4 | 15 | 28 | 22 | 63 | 4/0 AWG / 120 mm2 |
| SC 150 | 10.5 | 21.2 | 16.5 | 30.5 | 26 | 70 | 250/300 MCM / 150 mm2 |
| SC 185 | 6.5 | 23.5 | 18.5 | 34 | 32 | 75 | 300/350 MCM / 185 mm2 |
| SC 240 | 8.4 | 26.5 | 21 | 38.5 | 38 | 90 | 400/500 MCM / 240 mm2 |
| SC 300 | 10.5 | 30 | 23.5 | 43.5 | 42 | 98 | 500 /600 MCM / 300 mm2 |
| SC 400 | 10.5 | 36.5 | 28.5 | 52.5 | 44 | 110 | 600/750 MCM / 400 mm2 |
| SC 500 | 10.5 | 39 | 30 | 56 | 48 | 120 | 800/1000 MCM / 500 mm2 |
| SC 630 | 10.5 | 45 | 35 | 65 | 56 | 140 | 1000/1250 MCM / 630 mm2 |
