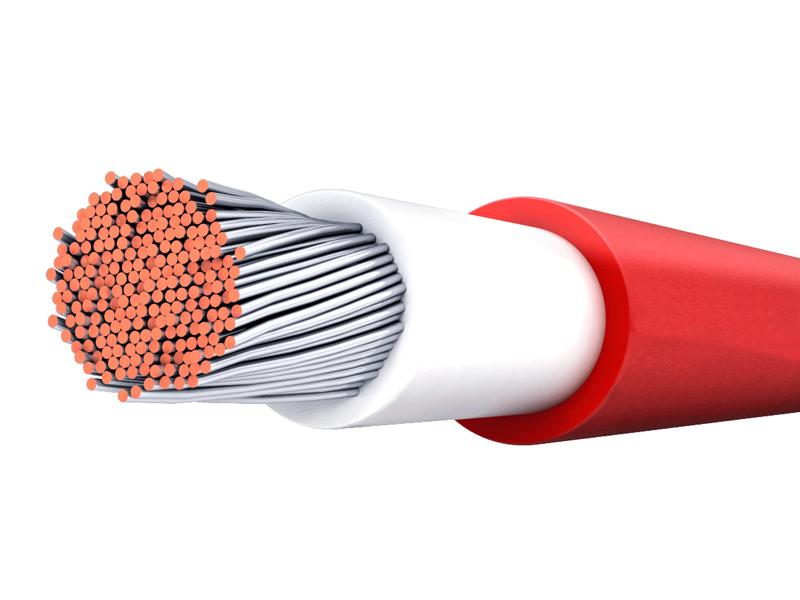

Solar Cable XLPO Tinned Copper For Photovoltaic Panels
Application： Solar cables are special cables used in solar power generation systems. They are mainly used to connect photovoltaic modules, inv ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Solar cables are special cables used in solar power generation systems. They are mainly used to connect photovoltaic modules, inverters and other equipment. They transmit DC power in harsh outdoor environments. They are resistant to weather, ozone, high and low temperatures, and are designed to have a long service life.
Standard：
EN 50618, IEC 62930

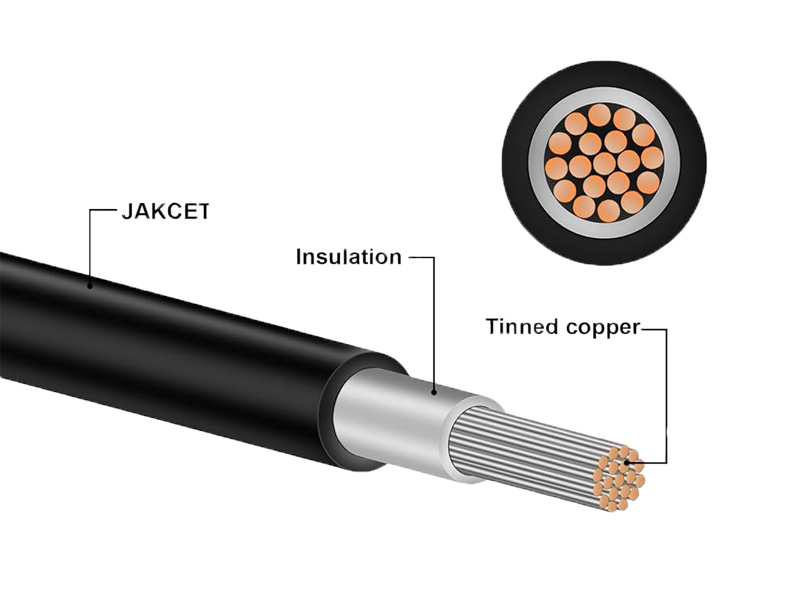

Construction：
Conductor: Class 5 Tinned-copper conductor
Insulation: XLPO
Outer sheath: XLPO
Outer sheath color: Black, Red
Technical Data：
1.Rated voltage: U0/U AC 1.0/1.0kV, DC 1.5kV.
2.Voltage test on completed cable: AC 6.5kV, 5min
3.Conductor maximum temperature: +120°C
4.Service life: > 25years（-40°C up to +90°C）
5.Min bending radius: 4×D (overall diameter of cable)
6.The permitted short-circuit-temperature: 200°C, 5 seconds
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | ||
| Conductor | Max. DC resistance of Conductor at 20℃ | Approx. Overall Dia. | ||
| Str. No. | ||||
| mm2 | No./dia(mm) | Ω/km | mm | kg/km |
| 1.5 | 30*0.25 | 13.7 | 5.0 | 37 |
| 2.5 | 49*0.25 | 8.21 | 5.4 | 49 |
| 4 | 56*0.285 | 5.09 | 6.0 | 67 |
| 6 | 84*0.285 | 3.39 | 6.5 | 85 |
| 10 | 84*0.40 | 1.95 | 8.0 | 134 |
| 16 | 128*0.40 | 1.24 | 9.6 | 194 |
| 25 | 192*0.40 | 0.795 | 11.4 | 316 |
| 35 | 276*0.40 | 0.565 | 13.3 | 428 |
