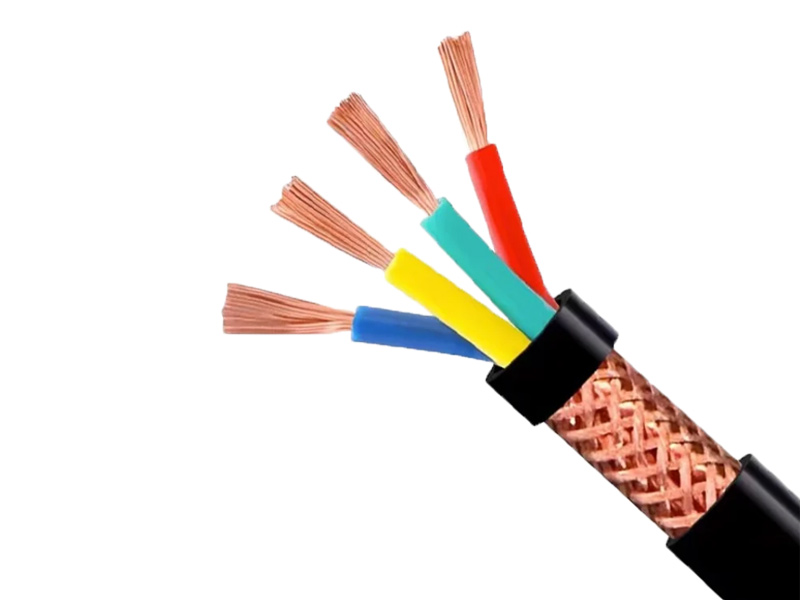

Multi Core Control Cable Copper Wire Braided Shield
Application： Control cables are low-voltage signal transmission cables used in electrical control systems. They are mainly used in secondary c ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Control cables are low-voltage signal transmission cables used in electrical control systems. They are mainly used in secondary circuits, such as power distribution devices and instrument signals. They are suitable for environments such as tunnels and cable trenches and have moisture-proof, corrosion-resistant and mechanical protection capabilities.
Standard：
IEC 60502, IEC 60228
Construction：
1.Conductor：Copper, Class 1 or Class 2.
2.Insulation：Polyvinyl chloride (PVC)
3.Filler：If any
4.Wrapping tape：Non-hygroscopic material
5.Shield：Copper wire braided
6.Outer Sheath：Polyvinyl chloride (PVC)
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | |||||
| CU Conductor | Insulation | Outer Sheath | Approx. Overall Dia. | ||||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | ||||
| Core No. | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 4 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 10.7 | 174 |
| 5 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 11.5 | 204 |
| 6 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 12.4 | 234 |
| 7 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 12.4 | 256 |
| 8 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 14.4 | 310 |
| 10 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 16.3 | 392 |
| 12 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 16.7 | 440 |
| 14 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 17.5 | 493 |
| 16 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 18.4 | 547 |
| 19 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 19.3 | 623 |
| 24 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 22.7 | 789 |
| 27 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 23.2 | 860 |
| 30 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 24.0 | 935 |
| 37 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 26.0 | 1142 |
| 44 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 29.0 | 1337 |
| 48 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 29.5 | 1430 |
| 52 | 1.5 | 7 | 1.56 | 0.7 | 2.0 | 30.9 | 1569 |
| 61 | 1.5 | 7 | 1.56 | 0.7 | 2.0 | 32.7 | 1791 |
Note：Conductor size range: 1mm2 - 10mm2, If you need other sizes, please ask us for a quote
