ACSR (Aluminium Conductor Steel Reinforced)
ACSR (Aluminum Steel Core Stranded Wire) is a composite conductor consisting of aluminum and steel wires, widely used in power transmission and ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
ACSR (Aluminum Steel Core Stranded Wire) is a composite conductor consisting of aluminum and steel wires, widely used in power transmission and distribution systems.
ACSR (Aluminium Conductor Steel Reinforced) Application
Used as bare overhead transmission cable and as primary and secondary distribution cable.
ACSR (Aluminium Conductor Steel Reinforced) Standard
IEC61089 , ASTM B-232, BS215

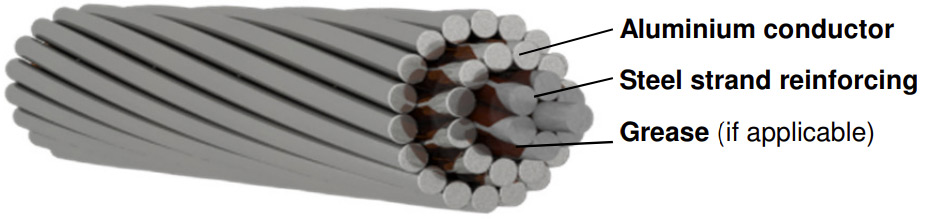

ACSR (Aluminium Conductor Steel Reinforced) Construction
Concentrically stranded
Max. Size 3500MCM, Max. str. No. 91
ACSR (Aluminium Conductor Steel Reinforced) Features
High-conductivity,high-strength
Product Parameters
ACSR (Aluminum Stranded Steel Wire) Parameters
| Technical characteristics / U.S.A Sizes - ASTM B232 | ||||||||||||||
| Code name | Area | Stranding and diameter | Approximate overall diameter | Approx. Weight | Rated tensile strength | Maximum D.C. Resistance at 20℃ Ω/km | ||||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||||||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | ||||
| wren | 8 | 8.34 | 1.39 | 9.73 | 6 | 1.33 | 1 | 1.33 | 3.99 | 22.9 | 10.8 | 33.7 | 308 | 3.43035 |
| Turkey | 6 | 13.29 | 2.19 | 15.48 | 6 | 1.68 | 1 | 1.68 | 5.04 | 37.0 | 17.0 | 54.0 | 524 | 2.15860 |
| Swan | 4 | 21.16 | 3.55 | 24.71 | 6 | 2.12 | 1 | 2.12 | 6.36 | 58.0 | 27.0 | 85.0 | 832 | 1.35570 |
| Swante | 4 | 21.16 | 5.35 | 26.50 | 7 | 1.96 | 1 | 1.96 | 6.53 | 58.0 | 42.0 | 100.0 | 1053 | 1.35570 |
| Swallow | 3 | 26.69 | 4.45 | 31.14 | 6 | 2.38 | 1 | 2.38 | 7.14 | 73.3 | 34.6 | 107.9 | 1021 | 1.07124 |
| Sparrow | 2 | 33.61 | 5.61 | 39.22 | 6 | 2.67 | 1 | 2.67 | 8.01 | 92.0 | 44.0 | 136.0 | 1270 | 0.85350 |
| Sparate | 2 | 33.61 | 8.52 | 42.13 | 7 | 2.47 | 1 | 2.47 | 8.24 | 92.0 | 67.0 | 159.0 | 1611 | 0.85350 |
| Robin | 1 | 42.39 | 7.10 | 49.49 | 6 | 3.00 | 1 | 3.00 | 9.00 | 116.0 | 55.0 | 171.0 | 1585 | 0.67670 |
| Raven | 0 | 53.48 | 8.90 | 62.38 | 6 | 3.37 | 1 | 3.37 | 10.11 | 147.0 | 69.0 | 216.0 | 1932 | 0.53640 |
| Quail | 2/0 | 67.42 | 11.23 | 78.65 | 6 | 3.78 | 1 | 3.78 | 11.34 | 185.0 | 88.0 | 273.0 | 2362 | 0.42550 |
| ACSR Technical characteristics / BS215 | |||||||||||||
| Code name | Nominal aluminum area mm2 | Stranding Number and wire dia. | Sectional area of aluminum | Total sectional area | Overall diameter | Approx. weight | Calculated breaking load | Calculate D.C resistance at 20℃ | Final modulus of elasticity | Coefficient of linear expansion | |||
| Al | St | ||||||||||||
| No.s | mm | No.s | mm | mm2 | mm2 | mm | kg/km | daN | Ω/km | hBar | /℃ | ||
| Mole | 10 | 6 | 1.50 | 1 | 1.50 | 10.62 | 12.39 | 4.50 | 43 | 414 | 2.7060 | 7900 | 19.1Χ10-6 |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 20.94 | 24.43 | 6.33 | 85 | 788 | 1.3680 | 7900 | 19. lΧ10-6 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 26.24 | 30.62 | 7.08 | 106 | 961 | 1.0930 | 7900 | 19.1Χ10-6 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 31.61 | 36.88 | 7.77 | 128 | 1146 | 0.9077 | 7900 | 19.1Χ10-6 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 36.66 | 42.77 | 8.37 | 149 | 1320 | 0.7822 | 7900 | 19.1Χ10-6 |
| Ferret | 40 | 6 | 3.00 | 1 | 3.00 | 42.41 | 49.48 | 9.00 | 172 | 1520 | 0.6766 | 7900 | 19.1Χ10-6 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 52.88 | 61.70 | 10.05 | 214 | 1835 | 0.5426 | 7900 | 19.1Χ10-6 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 63.18 | 73.71 | 10.98 | 255 | 2180 | 0.4545 | 7900 | 19.1Χ10-6 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 63.27 | 100.30 | 12.95 | 465 | 5300 | 0.4567 | 7900 | 15.3Χ10-6 |
| Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 74.82 | 87.29 | 11.97 | 302 | 2570 | 0.3825 | 7900 | 19.1Χ10-6 |
