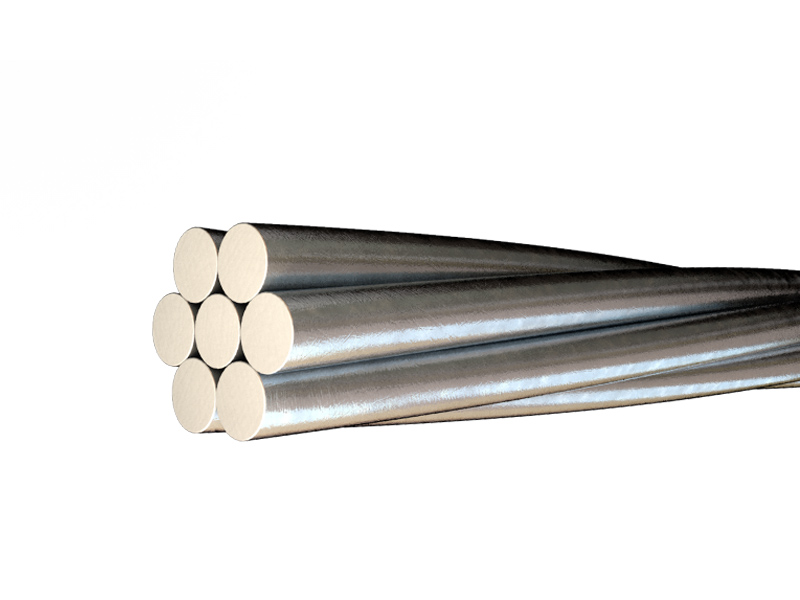

AAAC (All Alloy Aluminium Conductor)
AAAC (All-Alloy Aluminum Conductor) PVC Sheath is a cable structure with an aluminum alloy conductor and a PVC sheath on the outside. AAAC (All ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
AAAC (All-Alloy Aluminum Conductor) PVC Sheath is a cable structure with an aluminum alloy conductor and a PVC sheath on the outside.
AAAC (All Alloy Aluminium Conductor) Application
Used for overhead distribution and transmission lines especially adjacent to ocean coastlines for corrosion resistance.
AAAC (All Alloy Aluminium Conductor) Standard
IEC61089,ASTM B-399,BS3242,NFC34125
AAAC (All Alloy Aluminium Conductor) Construction
AA-6101 aluminium alloy,Concentrically stranded
Max. Size 2500MCM, Max. str. No. 91Wires
AAAC (All Alloy Aluminium Conductor) Features
Excellent conductivity,specific mechanical resistance, high corrosion resistance
Product Parameters
AAAC (All-alloy aluminum conductor parameters
Technical characteristics / U.S.A Sizes - ASTM
| Code Name | Conductor size | Stranding No. & Wire No.s | Approx. Overall Dia. | Approx. Weight | Rated strength | Max. D.C. resistance at 20℃ | ||
| AWG (MCM) | mm2 | No.s | mm | mm | Kg/km | Kn | Ω/km | |
| Akron | 15.51 | 7 | 1.68 | 5.04 | 43 | 4.9 | 2.15980 | |
| 4 | 21.14 | 7 | 1.96 | 5.88 | 58 | 6.7 | 1.35570 | |
| Alton | 48.69(4) | 24.67 | 7 | 2.12 | 6.36 | 68 | 7.8 | 1.58600 |
| 2 | 33.65 | 7 | 2.47 | 7.41 | 92 | 10.7 | 0.99870 | |
| Ames | 77.47(2) | 39.26 | 7 | 2.67 | 8.01 | 108 | 12.5 | 0.85470 |
| 1/0 | 53.49 | 7 | 3.12 | 9.36 | 148 | 17 | 0.62590 | |
| Azusa | 123.3(1/0) | 62.46 | 7 | 3.37 | 10.11 | 172 | 19.8 | 0.53650 |
| 2/0 | 67.45 | 7 | 3.5 | 10.5 | 186 | 20.5 | 0.49740 | |
| Anaheim | 155.4(2/0) | 78.75 | 7 | 3.78 | 11.34 | 217 | 24 | 0.42640 |
| 3/0 | 85.00 | 7 | 3.93 | 11.79 | 234 | 25.9 | 0.39450 | |
| Amherst | 195.7 (3/0) | 99.20 | 7 | 4.25 | 12.75 | 274 | 30.2 | 0.33730 |
| 4/0 | 107.20 | 7 | 4.42 | 13.26 | 296 | 32.7 | 0.31190 | |
| Alliance | 246.9 (4/0) | 125.10 | 7 | 4.77 | 14.31 | 345 | 38.1 | 0.26780 |
| 250.0 | 126.70 | 19 | 2.91 | 14.55 | 348 | 39 | 0.26510 | |
| 300.0 | 152.10 | 19 | 3.19 | 15.95 | 419 | 46.8 | 0.22060 | |
| Butte | 312.8 | 158.50 | 19 | 3.26 | 16.3 | 437 | 48.8 | 0.21120 |
| 350.0 | 177.30 | 19 | 3.45 | 17.25 | 490 | 52.3 | 0.18860 | |
| Canton | 394.5 | 199.00 | 19 | 3.66 | 18.3 | 551 | 59 | 0.16760 |
| 202.70 | 19 | 3.69 | 18.45 | 560 | 59.8 | 0.16490 | ||
| 450.0 | 228.00 | 19 | 3.91 | 19.55 | 629 | 67.2 | 0.14680 | |
| Cairo | 456.4 | 235.80 | 19 | 3.98 | 19.9 | 652 | 69.6 | 0.14310 |
| 500.0 | 253.40 | 19 | 4.12 | 20.6 | 698 | 74.6 | 0.13220 | |
| 550.0 | 278.70 | 37 | 3.1 | 21.7 | 770 | 83.8 | 0.12000 | |
| AAAC-Technical characteristics / BS3242 | ||||||||
| Code Name | Nominal Cross-section Area | Calculated Cross-section Area | Stranding No. & Wire No.s | Approx. Overall Dia. | Approx. Weight | Rated Strength | D.C. Resistance at 20°C | |
| mm2 | mm2 | No.s | mm | mm | Kg/km | Kn | Ω/km | |
| Box | 15 | 18.82 | 7 | 1.85 | 5.55 | 52 | 5.3 | 1.74950 |
| Acacia | 20 | 23.79 | 7 | 2.08 | 6.24 | 66 | 6.7 | 1.38400 |
| Almond | 25 | 30.10 | 7 | 2.34 | 7.02 | 83 | 8.4 | 1.09340 |
| Cedar | 30 | 35.47 | 7 | 2.54 | 7.62 | 98 | 9.9 | 0.92810 |
| 35 | 42.18 | 7 | 2.77 | 8.31 | 116 | 11.8 | 0.78040 | |
| Fir | 40 | 47.84 | 7 | 2.95 | 8.85 | 132 | 13.4 | 0.68800 |
| Hazel | 50 | 59.87 | 7 | 3.3 | 9.90 | 165 | 16.8 | 0.54980 |
| Pine | 60 | 71.65 | 7 | 3.61 | 10.83 | 198 | 20.1 | 0.45940 |
| 70 | 84.05 | 7 | 3.91 | 11.73 | 232 | 23.5 | 0.39170 | |
| Willow | 75 | 89.73 | 7 | 4.04 | 12.12 | 247 | 25.1 | 0.36690 |
| 80 | 96.52 | 7 | 4.19 | 12.57 | 266 | 27 | 0.34410 | |
| 90 | 108.00 | 7 | 4.44 | 13.32 | 299 | 30.5 | 0.30230 | |
| Oak | 100 | 118.90 | 7 | 4.65 | 13.95 | 328 | 33.3 | 0.27690 |
| 100 | 118.70 | 19 | 2.82 | 14.10 | 327 | 33.3 | 0.27870 | |
| Mulberry | 125 | 150. 90 | 19 | 3.18 | 15.90 | 416 | 42.3 | 0.21920 |
