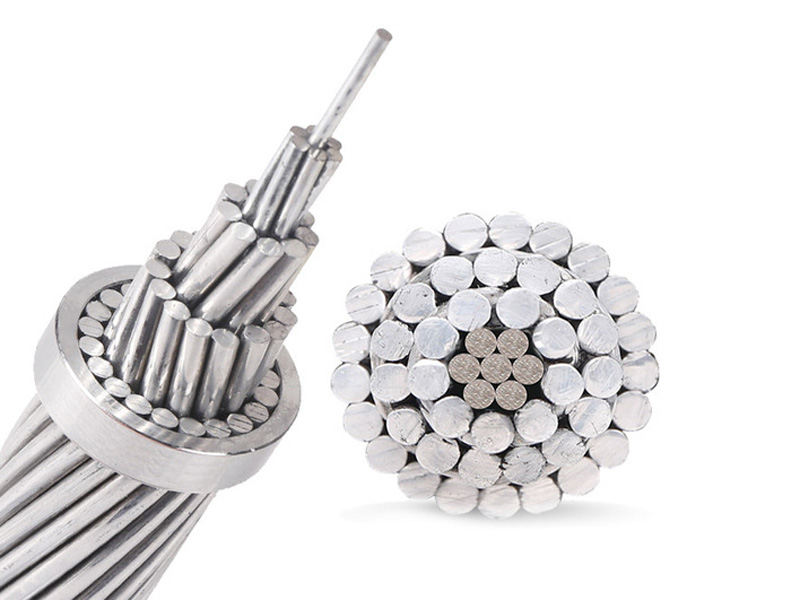

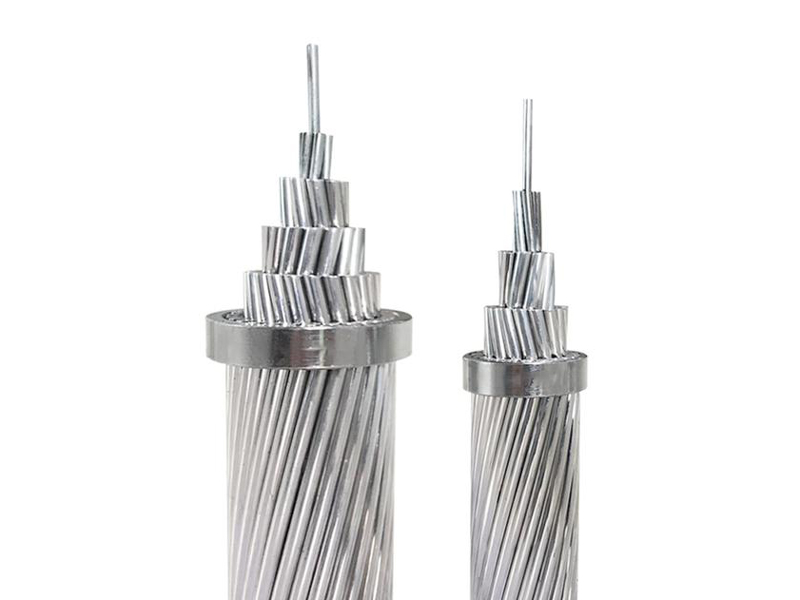

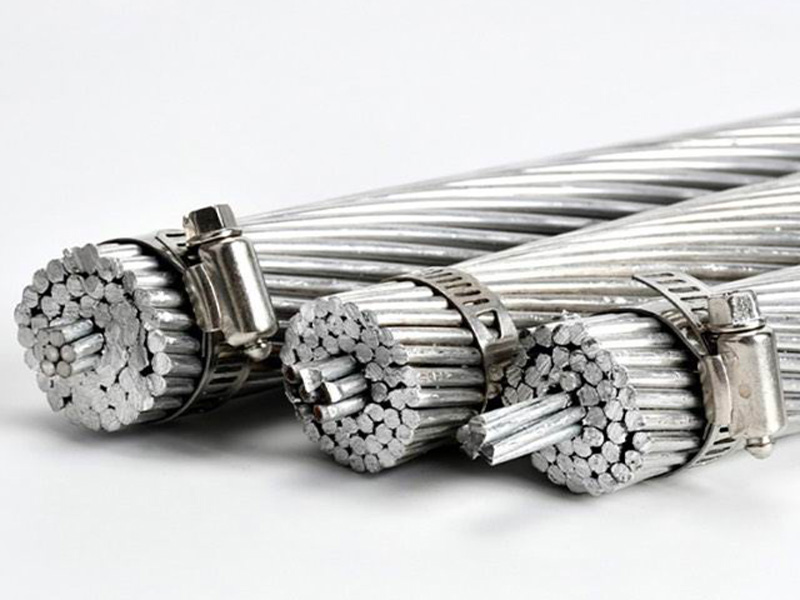

ACSR Core Wire
ACSR Core Wire , also named High Tensile Galvanized Steel Wire, can be supplied in single wire or in seven strands. Gaoxian has supply the high quality ACSR core wire for many countries especially the in areas with harsh environments.
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
ACSR Core Wire , also named High Tensile Galvanized Steel Wire, can be supplied in single wire or in seven strands. Gaoxian has supply the high quality ACSR core wire for many countries especially the in areas with harsh environments.
ACSR Core Wire Good Performance Characteristic
1. Sizes range from 1.25 mm to 4.77 mm
2. Available in oiled or oil-free
3. Can be produced according to actual customer requirements
4. 99.995% pure zinc as raw material
5. Hot-dip galvanized steel wire has a smooth surface
6. Strictly no joints and welds
7. High anti-corrosion performance
Product Parameters
ASTM B 498/B 498M:1998( Re-approved 2002)
| Wire diameter | Permissible
Variation |
Adherence Test | Stress at 1%
Extension |
Tensile strength | Elongation in 250mm | Zinc coating
Class A |
|
| mm | mm | Ration of Mandrel D to Wire D (Dia) | MPa（min） | MPa（min） | %（min） | mm | g/ m² |
| 1.60 to 1.90 | 210 | ||||||
| 1.60 to 2.30 | +0.04/-0.03 | 3 | 1310 | 1450 | 3.0 | over 1.90 to 2.30 | 220 |
| over 2.30 to 3.05 | +0.05/-0.05 | 4 | 1280 | 1410 | 3.5 | over 2.30 to 2.70 | 230 |
| over 3.05 to 3.60 | +0.08/-0.05 | 5 | 1240 | 1410 | 4.0 | over 2.70 to 3.10 | 240 |
| over 3.60 to 4.80 | +0.10/-0.08 | 5 | 1170 | 1380 | 4.0 | over 3.10 to 3.50 | 260 |
| over 3.50 to 3.90 | 270 | ||||||
| over 3.90 to 4.50 | 275 | ||||||
| over 4.50 to 4.80 | 300 | ||||||
BS EN 50189-2000（For ST1A)
| Nominal wire diameter
mm |
tolerance | Stress at 1% extension | Tensile strength | Elongation on 250mm | Wrapping test | No of torsion twists | Zinc Coating | ||
| over | Up to and including | mm | N/mm² | N/mm² | % | Min mass of Zn | Min No. of one minute dips | ||
| min | min | Min | *D | Min | g/ m² | ||||
| 1.57 | 1.75 | +0.3/-0.3 | 1170 | 1400 | 3.0 | 1 | 18 | 200 | 2.0 |
| 1.75 | 2.25 | +0.3/-0.3 | 1170 | 1400 | 3.0 | 1 | 18 | 215 | 2.5 |
| 2.25 | 2.75 | +0.4-0.4 | 1140 | 1350 | 3.0 | 1 | 16 | 230 | 2.5 |
| 2.75 | 3.00 | +0.50.5 | 1140 | 1350 | 3.5 | 1 | 16 | 230 | 3.0 |
| 3.00 | 3.50 | +0.5-0.5 | 1110 | 1300 | 3.5 | 1 | 14 | 245 | 3.5 |
| 3.50 | 4.25 | +0.6-0.6 | 1110 | 1300 | 4.0 | 1 | 12 | 260 | 3.5 |
| 4.25 | 4.75 | +0.6-0.6 | 1110 | 1300 | 4.0 | 1 | 12 | 275 | 4.0 |
