AAC (All Aluminium Conductors)
AAC (All Aluminum Conductor) is a cable structure: All Aluminum Conductor (AAC): The conductor is made entir AAC (All Aluminum Conductor) Appli ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
AAC (All Aluminum Conductor) is a cable structure:
All Aluminum Conductor (AAC): The conductor is made entir
AAC (All Aluminum Conductor) Application
Used in Overhead transmission for primary or secondary distribution lines.
AAC (All Aluminum Conductor) Standard
ASTM B231,IEC61089,BS215

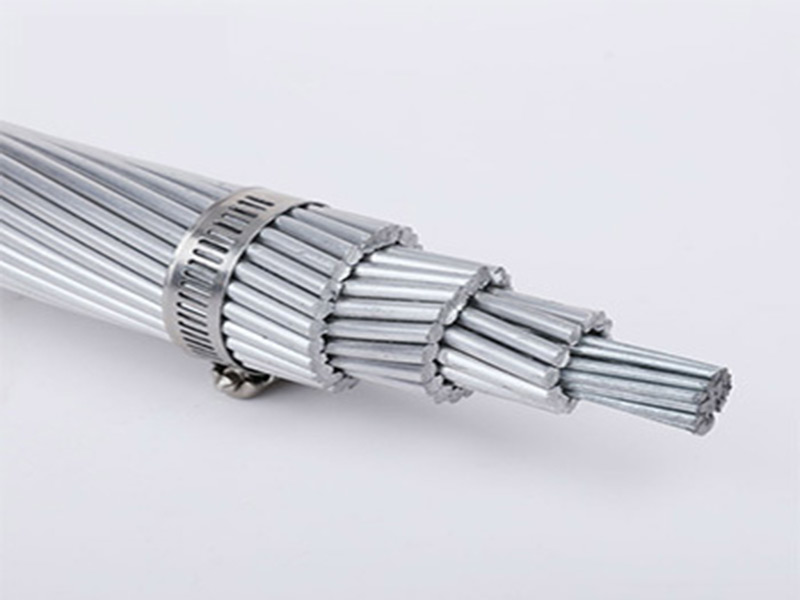

AAC (All Aluminum Conductor) Construction
Aluminum 1350-H19 wires, concentrically stranded
Max. size 2000mm2( 4000MCM)/ Max. str. no. 127 wires
AAC (All Aluminum Conductor) Features
High-capacity,high-conductivity,low weight and low cost
Product Parameters
AAC (All Aluminum Conductor) Parameters
| Technical characteristics of Al conductors / International standard-lEC1089 | |||||||
| Code Number | Nominal Cross-section Area | Stranding No. & Wire Dia. | Approx. Overall Dia. | Approx. Weight | Nominal breaking Strength | Maximum D.C. Resistance at 20℃ | |
| mm2 | No.s | mm | mm | kg/km | kN | Ω/km | |
| 10 | 10 | 7 | 1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68.4 | 4.5 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109.4 | 6.8 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.20 | 172.3 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.90 | 274.8 | 17 | 0.2877 |
| 125 | 125 | 19 | 2.89 | 14.50 | 343.6 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.40 | 439.8 | 26.4 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.30 | 549.7 | 32 | 0.1439 |
| Technical characteristics / British Sizes-BS 215 – Part1 | ||||||||
| Code Name | Nominal Cross-section Area | Calculated Cross-section Area | Stranding No. & Wire Dia. | Approx. Overall Dia. | Approx. Weight | Nominal breaking Strength | Maximum D.C. Resistance at 20℃ | |
| mm2 | mm2 | No.s | mm | mm | kg/km | daN | Ω/km | |
| Midge | 22 | 25 | 7 | 2.06 | 6.18 | 64 | 399 | 1.2270 |
| Aphis | 25 | 67 | 7 | 3.35 | 10.05 | 170 | 411 | 1.0810 |
| Gnat | 25 | 29 | 7 | 2.21 | 6.63 | 74 | 459 | 1.0660 |
| Weevil | 30 | 34 | 3 | 3.66 | 7.88 | 87 | 486 | 0.9082 |
| Mosquito | 35 | 40 | 7 | 2.59 | 7.77 | 102 | 603 | 0.7762 |
| Ladybird | 40 | 47 | 7 | 2.79 | 8.37 | 118 | 687 | 0.6689 |
| Ant | 50 | 57 | 7 | 3.1 | 9.30 | 146 | 828 | 0.5419 |
| Fly | 60 | 69 | 7 | 3.4 | 10.20 | 175 | 990 | 0.4505 |
| Bluebottle | 70 | 80 | 7 | 3.66 | 10.98 | 203 | 1134 | 0.3881 |
| Earwig | 75 | 85 | 7 | 3.78 | 11.34 | 217 | 1194 | 0.3644 |
