Bare Copper Conductor ( BCC )
Application： Bare copper stranded wire is a multi-strand copper conductor without an insulation layer. With its excellent conductivity, flexib ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：

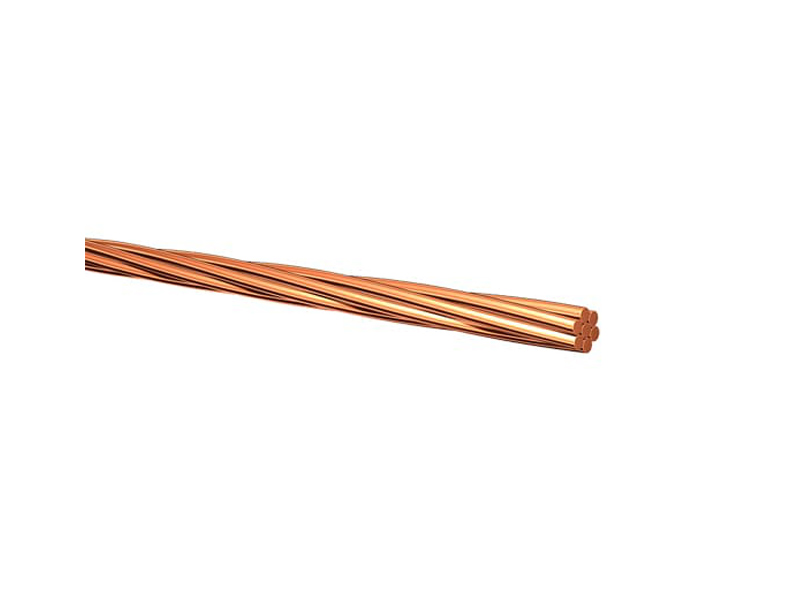

Bare copper stranded wire is a multi-strand copper conductor without an insulation layer. With its excellent conductivity, flexibility and durability, it is widely used in electrical equipment connection, grounding and wiring, copper mine ground wire (Zambian market) and rail transportation facilities, etc.
Standard
- BS 6360
- IEC 60228
- ASTM B-1 Hard-Drawn Copper Wire.
- ASTM B-2 Medium-Hard Copper Wire.
- ASTM B-3 Soft or Annealed Copper Wire.
- ASTM B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.
Features
High-conductivity,high-strength or High-Flexibility
Product Parameters
| Nominal
Section Area |
Cable Data Sheet | |||||
| Number & Diameter of Wire | Overall Diameter | Max. DC Conductor Resistance At 20℃ | Allowable Current Carrying Capacity in Air | Approx. Weight | Standard Packing | |
| mm2 | No./mm | mm | Ω/km | A | kg/km | M/Drum |
| 10 | 7/1.35 | 4.05 | 1.805 | 90 | 90 | 1000 |
| 16 | 7/1.70 | 5.10 | 1.138 | 125 | 143 | 1000 |
| 25 | 7/2.14 | 6.42 | 0.719 | 160 | 227 | 1000 |
| 35 | 7/2.52 | 7.56 | 0.518 | 200 | 314 | 1000 |
| 50 | 7/3.02 | 9.06 | 0.358 | 250 | 452 | 1000 |
| 50 | 19/1.78 | 8.90 | 0.383 | 250 | 428 | 1000 |
| 70 | 19/2.14 | 10.70 | 0.265 | 310 | 618 | 1000 |
| 95 | 19/2.52 | 12.60 | 0.192 | 380 | 858 | 1000 |
| 120 | 19/2.85 | 14.25 | 0.149 | 440 | 1097 | 1000 |
| 150 | 37/2.25 | 15.75 | 0.124 | 510 | 1334 | 1000 |
| 185 | 37/2.52 | 17.64 | 0.098 | 585 | 1673 | 1000 |
| 240 | 61/2.25 | 20.25 | 0.075 | 700 | 2200 | 1000 |
