Control Cable Aluminum Foil Polyester Tape Shield STA Armored
Application： Control cables are low-voltage signal transmission cables used in electrical control systems. They are mainly used in secondary c ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Control cables are low-voltage signal transmission cables used in electrical control systems. They are mainly used in secondary circuits, such as power distribution devices and instrument signals. They are suitable for environments such as tunnels and cable trenches and have moisture-proof, corrosion-resistant and mechanical protection capabilities.
Standard：
IEC 60502, IEC 60228

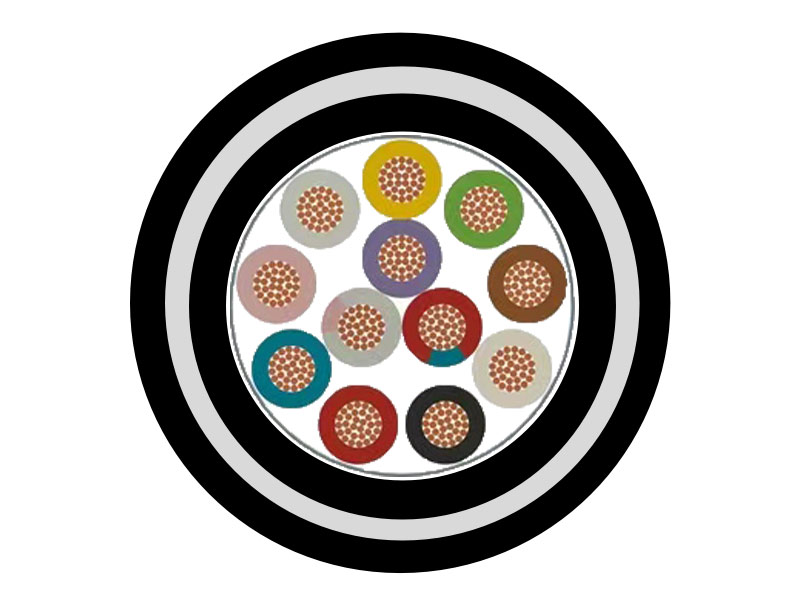

Construction：
1.Conductor：Copper, Class 1 or Class 2.
2.Insulation：Polyvinyl chloride (PVC)
3.Filler：If any
4.Wrapping tape：Non-hygroscopic material
5.Shield：Aluminum foil polyester tape with tinned copper drain wire
6.Inner Sheath：Polyvinyl chloride (PVC)
7.Armor：Galvanized Steel Tape
8.Outer Sheath：Polyvinyl chloride (PVC)
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | |||||
| CU Conductor | Insulation | Outer Sheath | Approx. Overall Dia. | ||||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | ||||
| Core No. | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 4 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 13.7 | 295 |
| 5 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 14.5 | 332 |
| 6 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 15.4 | 371 |
| 7 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 15.4 | 393 |
| 8 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 16.8 | 442 |
| 10 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 18.5 | 518 |
| 12 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 18.9 | 569 |
| 14 | 1.5 | 7 | 1.56 | 0.7 | 1.5 | 19.7 | 627 |
| 16 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 21.0 | 707 |
| 19 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 21.9 | 789 |
| 24 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 24.9 | 958 |
| 27 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 25.4 | 1032 |
| 30 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 26.2 | 1113 |
| 37 | 1.5 | 7 | 1.56 | 0.7 | 1.7 | 28.4 | 1330 |
| 44 | 1.5 | 7 | 1.56 | 0.7 | 2.0 | 32.0 | 1588 |
| 48 | 1.5 | 7 | 1.56 | 0.7 | 2.0 | 32.5 | 1685 |
| 52 | 1.5 | 7 | 1.56 | 0.7 | 2.0 | 33.3 | 1789 |
| 61 | 1.5 | 7 | 1.56 | 0.7 | 2.0 | 35.1 | 2023 |
Note：Conductor size range: 1mm2 - 10mm2, If you need other sizes, please ask us for a quote
