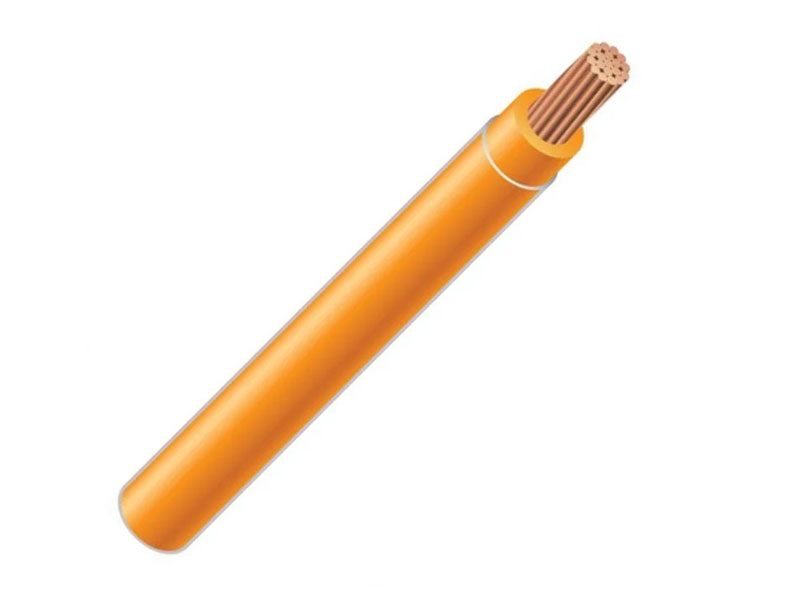

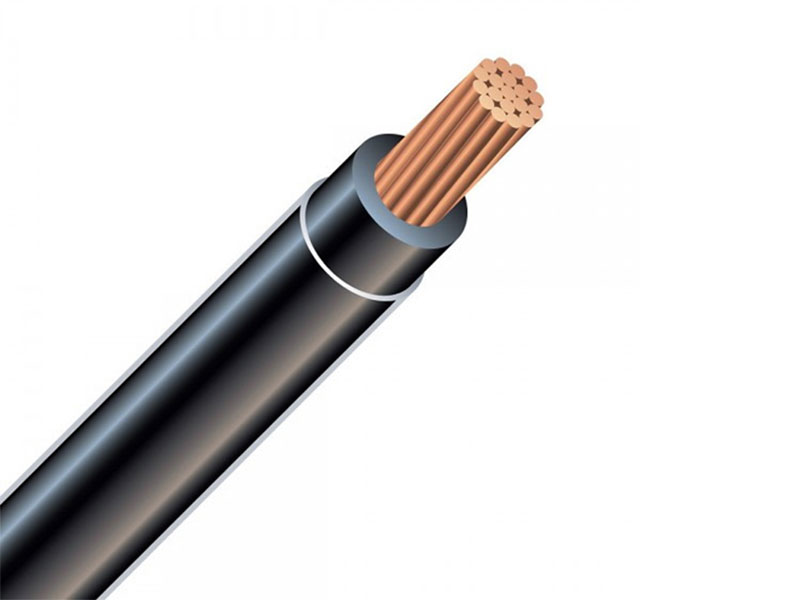

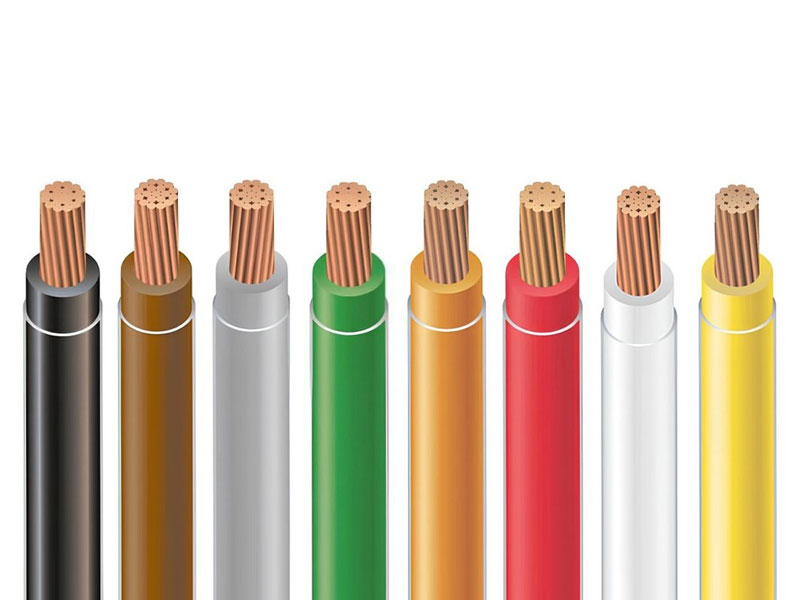

THHN Cable Copper Wire
Application： THHN wire, short for Thermoplastic High Heat-resistant Nylon-coated wire, is a versatile building wire used for a variety of elec ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
THHN wire, short for Thermoplastic High Heat-resistant Nylon-coated wire, is a versatile building wire used for a variety of electrical applications, both indoors and outdoors. It is commonly found in residential, commercial, and industrial settings, including wiring for lighting, outlets, appliances, and HVAC systems. Its resistance to heat, moisture, oil, and grease makes it suitable for diverse environments.
Standard：
IEC 60227 , BS6004, UL1581, UL83
Construction：
Stranded Copper Conductor + PVC insulation + Nylon Jacket （THHN）
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | |||||
| CU Conductor | PVC Insulation | Nylon Jacket | Approx. Overall Dia. | ||||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | ||||
| AWG | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 14 | 2.08 | 1 | 1.63 | 0.38 | 0.1 | 2.59 | 23 |
| 12 | 3.31 | 1 | 2.05 | 0.38 | 0.1 | 3.01 | 35 |
| 10 | 5.26 | 7 | 2.94 | 0.51 | 0.1 | 4.16 | 57 |
| 8 | 8.37 | 7 | 3.69 | 0.76 | 0.13 | 5.47 | 94 |
| 6 | 13.3 | 7 | 4.68 | 0.76 | 0.13 | 6.46 | 142 |
| 4 | 21.15 | 7 | 5.88 | 1.02 | 0.15 | 8.22 | 227 |
| 2 | 33.62 | 7 | 6.81 | 1.02 | 0.15 | 9.15 | 343 |
| 1 | 42.41 | 7 | 7.59 | 1.27 | 0.18 | 10.49 | 439 |
| 1/0 | 53.49 | 7 | 8.53 | 1.27 | 0.18 | 11.43 | 544 |
| 2/0 | 67.43 | 12 | 9.55 | 1.27 | 0.18 | 12.45 | 675 |
| 3/0 | 85.01 | 15 | 10.7 | 1.27 | 0.18 | 13.6 | 839 |
| 4/0 | 107.2 | 18 | 12.1 | 1.27 | 0.18 | 15 | 1046 |
