PVC Insulated Electric Wire H07V-R
Application： Fixed electric wire are mainly used as power supply cables for sockets, switches and light fittings across residential, commercia ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Fixed electric wire are mainly used as power supply cables for sockets, switches and light fittings across residential, commercial and industrial environments
Standard
IEC 60227 , BS6004, UL1581, UL83
Construction

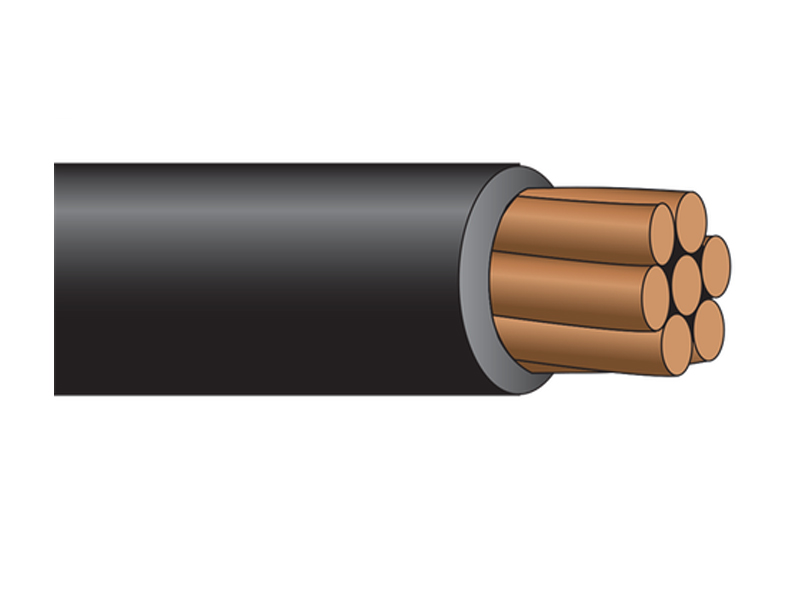

Stranded Copper Conductor With PVC insulation (H07V-R)
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | |||
| CU Conductor | PVC Insulation | Approx. Overall Dia. | |||
| Str. No. | Diameter | Nominal thickness | |||
| mm2 | No.s | mm | mm | mm | kg/km |
| 1.5 | 7 | 1.56 | 0.7 | 3 | 21 |
| 2.5 | 7 | 2.01 | 0.8 | 3.6 | 33 |
| 4 | 7 | 2.55 | 0.8 | 4.2 | 49 |
| 6 | 7 | 3.12 | 0.8 | 4.7 | 68 |
| 10 | 7 | 4.05 | 1.0 | 6.1 | 114 |
| 16 | 7 | 5.13 | 1.0 | 7.1 | 175 |
| 25 | 7 | 6.39 | 1.2 | 8.8 | 268 |
| 35 | 7 | 7.56 | 1.2 | 10 | 365 |
