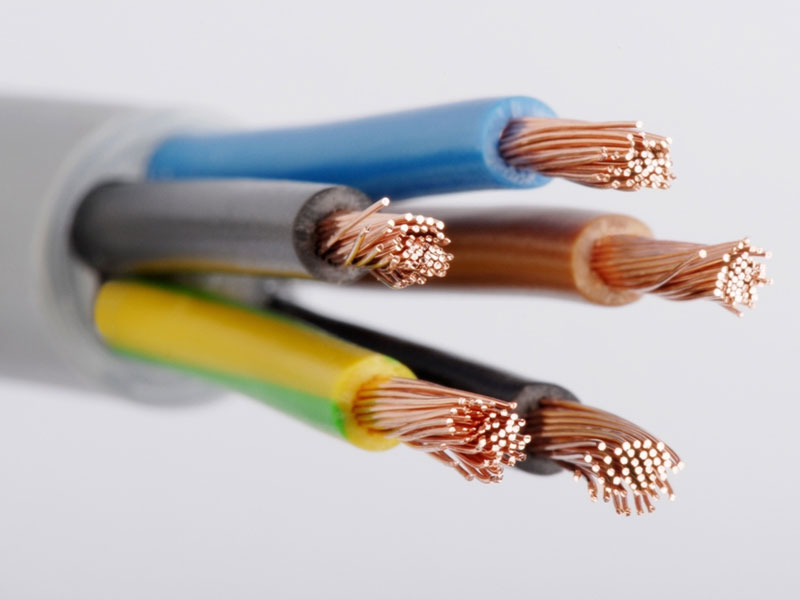

Multi-Core PVC Insulated Electric Cable
Application： Multi-core wires are suitable for the following typical scenarios due to their flexibility, bending resistance and high-frequency ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Multi-core wires are suitable for the following typical scenarios due to their flexibility, bending resistance and high-frequency transmission advantages: mechanical equipment lines, production line equipment, accessory cabinets, mobile power cables, and automotive circuits.
Standard：
IEC 60227 , BS6004 , EN 60228
Construction：
Conductor：
Class 1 Solid copper conductor Or Class 2 Stranded copper conductor
Insulation：PVC
Outer Sheath: PVC（LSZH, Flame retardant are both available if required）
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | |||||
| CU Conductor | PVC Insulation | Outer Sheath | Approx. Overall Dia. | ||||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | ||||
| Core No. | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 2 | 1.5 | 7 | 1.56 | 0.7 | 1.20 | 9.38 | 89 |
| 2 | 2.5 | 7 | 2.01 | 0.8 | 1.20 | 10.70 | 121 |
| 2 | 4 | 7 | 2.55 | 0.8 | 1.20 | 11.78 | 158 |
| 2 | 6 | 7 | 3.12 | 0.8 | 1.20 | 12.92 | 205 |
| 2 | 10 | 7 | 4.05 | 1.0 | 1.40 | 16.02 | 327 |
| 2 | 16 | 7 | 5.13 | 1.0 | 1.40 | 18.18 | 460 |
| 2 | 25 | 7 | 6.39 | 1.0 | 1.40 | 20.70 | 648 |
| 3 | 1.5 | 7 | 1.56 | 0.7 | 1.20 | 9.86 | 113 |
| 3 | 2.5 | 7 | 2.01 | 0.8 | 1.20 | 11.29 | 157 |
| 3 | 4 | 7 | 2.55 | 0.8 | 1.20 | 12.46 | 211 |
| 3 | 6 | 7 | 3.12 | 0.8 | 1.40 | 14.09 | 290 |
| 3 | 10 | 7 | 4.05 | 1.0 | 1.40 | 17.00 | 447 |
| 3 | 16 | 7 | 5.13 | 1.0 | 1.40 | 19.34 | 641 |
| 3 | 25 | 7 | 6.39 | 1.0 | 1.60 | 22.46 | 936 |
| 4 | 1.5 | 7 | 1.56 | 0.7 | 1.20 | 10.65 | 138 |
| 4 | 2.5 | 7 | 2.01 | 0.8 | 1.20 | 12.25 | 196 |
| 4 | 4 | 7 | 2.55 | 0.8 | 1.40 | 13.96 | 278 |
| 4 | 6 | 7 | 3.12 | 0.8 | 1.40 | 15.34 | 367 |
| 4 | 10 | 7 | 4.05 | 1.0 | 1.40 | 18.60 | 572 |
| 4 | 16 | 7 | 5.13 | 1.0 | 1.40 | 21.22 | 827 |
| 4 | 25 | 7 | 6.39 | 1.0 | 1.60 | 24.67 | 1212 |
| 5 | 1.5 | 7 | 1.56 | 0.7 | 1.20 | 11.56 | 165 |
| 5 | 2.5 | 7 | 2.01 | 0.8 | 1.20 | 13.36 | 235 |
| 5 | 4 | 7 | 2.55 | 0.8 | 1.40 | 15.23 | 336 |
| 5 | 6 | 7 | 3.12 | 0.8 | 1.40 | 16.78 | 445 |
| 5 | 10 | 7 | 4.05 | 1.0 | 1.40 | 20.45 | 699 |
| 5 | 16 | 7 | 5.13 | 1.0 | 1.60 | 23.79 | 1037 |
| 5 | 25 | 7 | 6.39 | 1.0 | 1.60 | 27.21 | 1490 |
