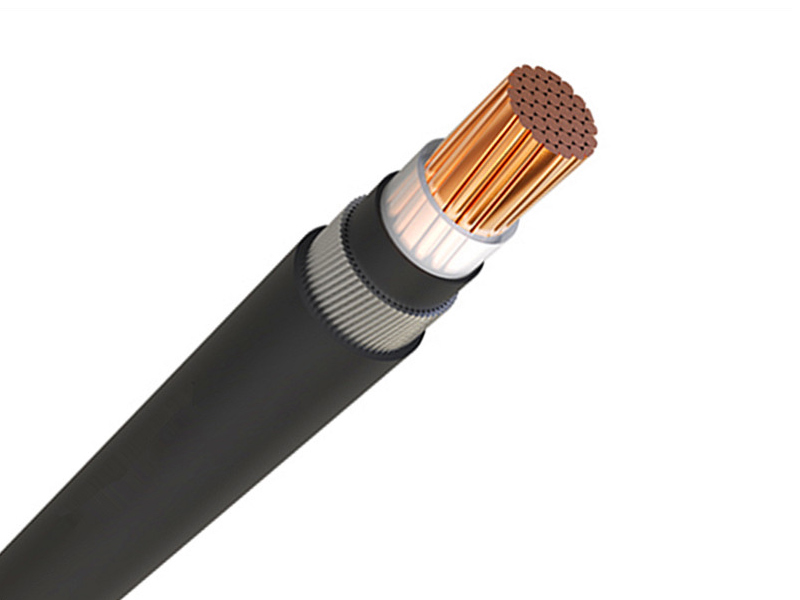

0.6/1kV Single Core Armored Power Cable
Application： Suitable for main power supplies, low-voltage distribution networks, industrial facilities, buildings and operating stations. For ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Suitable for main power supplies, low-voltage distribution networks, industrial facilities, buildings and operating stations. For fixed installation in the ground or concrete, in cable trenches or cable ducts, indoors or outdoors, in dry or wet locations.
Standard：
IEC 60228, IEC 60502-1
Construction：
1.Conductor：Class 2 Stranded Copper Conductor
2.Insulation：Cross linked polyethylene （XLPE）
3.Inner Sheath：Polyvinyl chloride compound (PVC)
4.Armor：Hard drawn Aluminum Wires (AWA)
5.Binder tape：Non-hygroscopic material tape
6.Outer Sheath：Polyvinyl chloride compound （PVC）
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | ||||||
| CU Conductor | XLPE Insulation | Inner Sheath | Outer Sheath | Approx. Overall Dia. | ||||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | Nominal Thickness | ||||
| Core No. | mm2 | No.s | mm | mm | mm | mm | mm | kg/km |
| 1 | 1.5 | 7 | 1.56 | 0.7 | 1.0 | 1.8 | 11.4 | 158 |
| 1 | 2.5 | 7 | 2.01 | 0.7 | 1.0 | 1.8 | 11.9 | 179 |
| 1 | 4 | 7 | 2.52 | 0.7 | 1.0 | 1.8 | 12.4 | 202 |
| 1 | 6 | 7 | 3.09 | 0.7 | 1.0 | 1.8 | 13.0 | 233 |
| 1 | 10 | 7 | 3.99 | 0.7 | 1.0 | 1.8 | 13.9 | 290 |
| 1 | 16 | 7 | 5.04 | 0.7 | 1.0 | 1.8 | 14.9 | 365 |
| 1 | 25 | 7 | 6.0 | 0.9 | 1.0 | 1.8 | 16.3 | 477 |
| 1 | 35 | 7 | 7.0 | 0.9 | 1.0 | 1.8 | 17.8 | 610 |
| 1 | 50 | 7 | 8.2 | 1.0 | 1.0 | 1.8 | 19.2 | 768 |
| 1 | 70 | 19 | 9.9 | 1.1 | 1.0 | 1.8 | 21.1 | 988 |
| 1 | 95 | 19 | 11.6 | 1.1 | 1.0 | 1.8 | 23.5 | 1303 |
| 1 | 120 | 19 | 13.0 | 1.2 | 1.0 | 1.8 | 25.1 | 1567 |
| 1 | 150 | 19 | 14.4 | 1.4 | 1.0 | 1.8 | 26.9 | 1870 |
| 1 | 185 | 37 | 16.2 | 1.6 | 1.0 | 1.8 | 29.2 | 2264 |
| 1 | 240 | 37 | 18.6 | 1.7 | 1.0 | 1.9 | 32.0 | 2860 |
