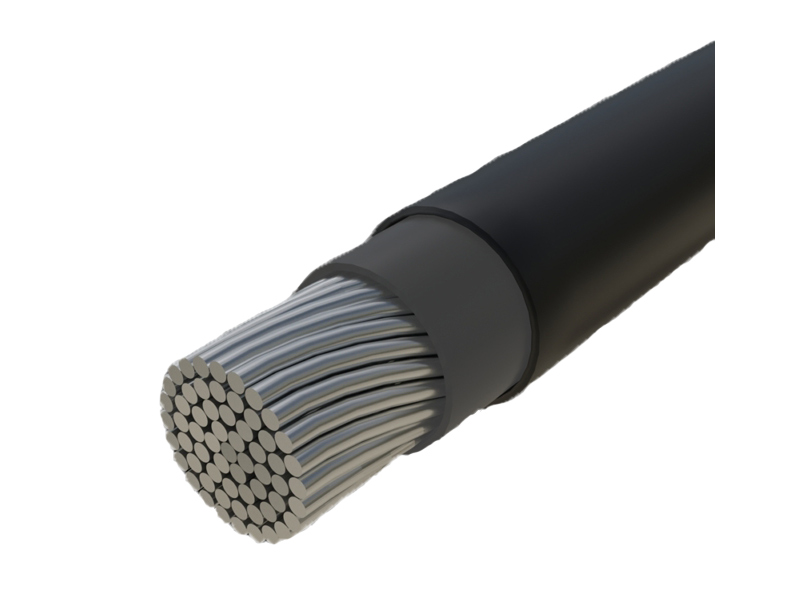

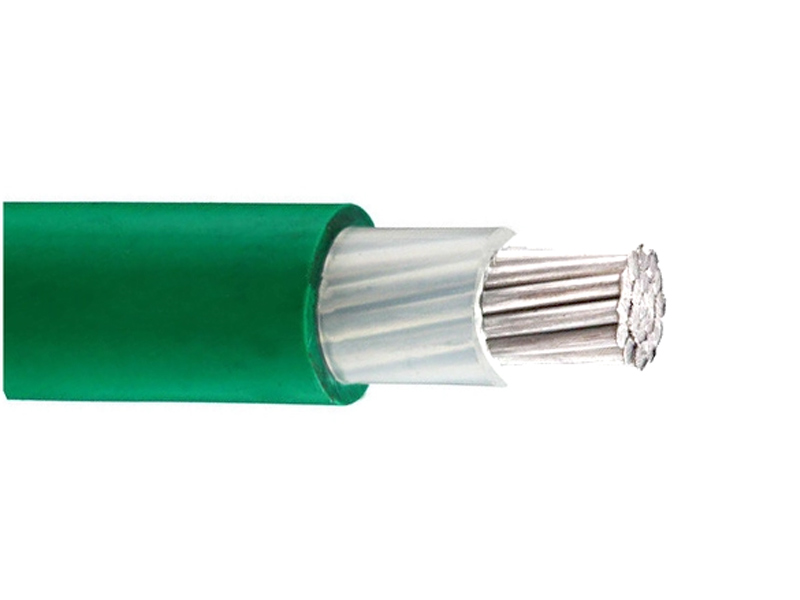

0.6/1kV Single Core Aluminum Power Cable
Application： Suitable for main power supplies, low-voltage distribution networks, industrial facilities, buildings and operating stations. For ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Suitable for main power supplies, low-voltage distribution networks, industrial facilities, buildings and operating stations. For fixed installation in the ground or concrete, in cable trenches or cable ducts, indoors or outdoors, in dry or wet locations.
Standard：
IEC 60502-1 or AS/ZNS 5000.1
Construction：
Conductor：Class 2 stranded (compacted) Aluminum
Insulation：Cross linked polyethylene （XLPE）
Outer Sheath：Polyvinyl chloride compound （PVC）
Product Parameters
| Size | Cable Data Sheet | Approx. Weight | |||||
| CU Conductor | XLPE Insulation | Outer Sheath | Approx. Overall Dia. | ||||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | ||||
| Core No. | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 1 | 10 | 7 | 3.99 | 0.7 | 1.4 | 8.3 | 81 |
| 1 | 16 | 7 | 5.04 | 0.7 | 1.4 | 9.3 | 106 |
| 1 | 25 | 7 | 6.0 | 0.9 | 1.4 | 10.7 | 145 |
| 1 | 35 | 7 | 7.0 | 0.9 | 1.4 | 11.7 | 179 |
| 1 | 50 | 7 | 8.2 | 1.0 | 1.4 | 13.1 | 231 |
| 1 | 70 | 19 | 9.9 | 1.1 | 1.4 | 15.0 | 305 |
| 1 | 95 | 19 | 11.6 | 1.1 | 1.5 | 16.9 | 397 |
| 1 | 120 | 19 | 13.0 | 1.2 | 1.5 | 18.5 | 483 |
| 1 | 150 | 19 | 14.4 | 1.4 | 1.6 | 20.5 | 593 |
| 1 | 185 | 37 | 16.2 | 1.6 | 1.6 | 22.8 | 726 |
| 1 | 240 | 37 | 18.6 | 1.7 | 1.7 | 25.6 | 927 |
| 1 | 300 | 37 | 20.8 | 1.8 | 1.8 | 28.2 | 1139 |
