Product Detail

Application:

To be used for main power supply such as in low voltage distribution power networks， indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.

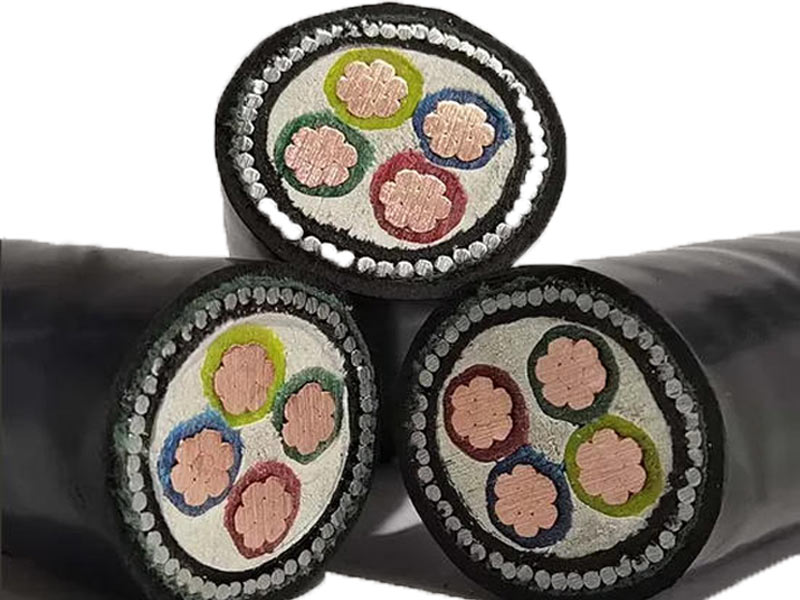

Construction:

1. Conductor - Class 2 stranded (compacted)Copper

2.Insulation - Polyvinyl chloride compound (PVC)

3.Filler - Non-hygroscopic material

4.Binder tape - Non-hygroscopic material tape

5.Inner sheath - Polyvinyl chloride compound (PVC)

6.Armor - Galvanized Steel Wires

7.Binder tape - Non-hygroscopic material tape

8.Outer sheath - Polyvinyl chloride compound (PVC)

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 160℃(≤300mm2) 140℃(>300mm2)

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

According to customer requirements

Standard:

IEC 60502-1 or AS/ZNS 5000.1

Product Parameters

Size		2 Core Cable Data Sheet					Approx. Weight
		CU Conductor		Insulation	Outer Sheath	Approx. Overall Dia.
		Str. No.	Resistance	Nominal Thickness	Nominal Thickness	Approx. Overall Dia.
Core No.	mm2	No.s	Ω/km	mm	mm	mm	kg/km
2	1.5	7	12.1	0.8	1.8	14.9	355
2	2.5	7	7.41	0.8	1.8	15.8	404
2	4	7	4.61	1.0	1.8	18.5	616
2	6	7	3.08	1.0	1.8	19.7	709
2	10	7	1.83	1.0	1.8	21.5	863
2	16	7	1.15	1.0	1.8	23.6	1070
2	25	7	0.727	1.2	1.8	27.0	1526
2	35	7	0.524	1.2	1.8	29.0	1814
2	50	7	0.387	1.4	1.9	32.5	2282
2	70	19	0.268	1.4	2.1	37.1	3114
2	95	19	0.193	1.6	2.2	41.9	3941
2	120	19	0.153	1.6	2.3	44.9	4629
2	150	19	0.124	1.8	2.5	50.0	5857
2	185	37	0.0991	2.0	2.6	55.0	7036
2	240	37	0.0754	2.2	2.8	61.0	8675

Size		3 Core Cable Data Sheet					Approx. Weight
		CU Conductor		Insulation	Outer Sheath	Approx. Overall Dia.
		Str. No.	Resistance	Nominal Thickness	Nominal Thickness	Approx. Overall Dia.
Core No.	mm2	No.s	Ω/km	mm	mm	mm	kg/km
3	1.5	7	12.1	0.8	1.8	15.4	391
3	2.5	7	7.41	0.8	1.8	16.4	452
3	4	7	4.61	1.0	1.8	19.3	698
3	6	7	3.08	1.0	1.8	20.5	810
3	10	7	1.83	1.0	1.8	22.5	1015
3	16	7	1.15	1.0	1.8	25.4	1419
3	25	7	0.727	1.2	1.8	28.4	1830
3	35	7	0.524	1.2	1.9	30.8	2240
3	50	7	0.387	1.4	2.0	35.3	3071
3	70	19	0.268	1.4	2.1	39.5	3909
3	95	19	0.193	1.6	2.3	44.5	5002
3	120	19	0.153	1.6	2.4	48.7	6300
3	150	19	0.124	1.8	2.6	53.5	7523
3	185	37	0.0991	2.0	2.7	58.5	9016
3	240	37	0.0754	2.2	2.9	65.4	11305

Size		4 Core Cable Data Sheet					Approx. Weight
		CU Conductor		Insulation	Outer Sheath	Approx. Overall Dia.
		Str. No.	Resistance	Nominal Thickness	Nominal Thickness	Approx. Overall Dia.
Core No.	mm2	No.s	Ω/km	mm	mm	mm	kg/km
4	1.5	7	12.1	0.8	1.8	16.2	438
4	2.5	7	7.41	0.8	1.8	18.2	634
4	4	7	4.61	1.0	1.8	20.5	799
4	6	7	3.08	1.0	1.8	21.9	936
4	10	7	1.83	1.0	1.8	24.7	1309
4	16	7	1.15	1.0	1.8	27.3	1670
4	25	7	0.727	1.2	1.9	30.8	2224
4	35	7	0.524	1.2	2.0	33.4	2714
4	50	7	0.387	1.4	2.1	38.8	3796
4	70	19	0.268	1.4	2.3	43.3	4822
4	95	19	0.193	1.6	2.5	49.8	6610
4	120	19	0.153	1.6	2.6	53.8	7892
4	150	19	0.124	1.8	2.7	58.4	9333
4	185	37	0.0991	2.0	2.9	64.6	11337
4	240	37	0.0754	2.2	3.1	71.8	14153

Size		5 Core Cable Data Sheet					Approx. Weight
		CU Conductor		Insulation	Outer Sheath	Approx. Overall Dia.
		Str. No.	Resistance	Nominal Thickness	Nominal Thickness	Approx. Overall Dia.
Core No.	mm2	No.s	Ω/km	mm	mm	mm	kg/km
5	1.5	7	12.1	0.8	1.8	18.0	600
5	2.5	7	7.41	0.8	1.8	19.3	706
5	4	7	4.61	1.0	1.8	21.8	904
5	6	7	3.08	1.0	1.8	23.3	1073
5	10	7	1.83	1.0	1.8	26.4	1518
5	16	7	1.15	1.0	1.8	29.3	1944
5	25	7	0.727	1.2	1.9	33.2	2599
5	35	7	0.524	1.2	2.1	37.1	3471
5	50	7	0.387	1.4	2.2	42.1	4507
5	70	19	0.268	1.4	2.4	48.1	6132
5	95	19	0.193	1.6	2.6	54.6	7968
5	120	19	0.153	1.6	2.7	58.6	9413
5	150	19	0.124	1.8	2.9	64.3	11318
5	185	37	0.0991	2.0	3.1	70.7	13663
5	240	37	0.0754	2.2	3.4	80.2	18004
