Medium Voltage 1- 35kV Single Core Copper Armored Cable
Application： Medium voltage cables typically have voltage levels between 1kV and 35kV and are primarily installed in urban power grids, factor ......
Email: jason@xienuoenterprise.com
Online Chat
Product Detail
Application：
Medium voltage cables typically have voltage levels between 1kV and 35kV and are primarily installed in urban power grids, factory power distribution systems, substation connections, residential areas, and mining facilities, as well as in dry or wet locations.
Standard：
IEC 60502-2, BS 6622, ICEA S 93-639

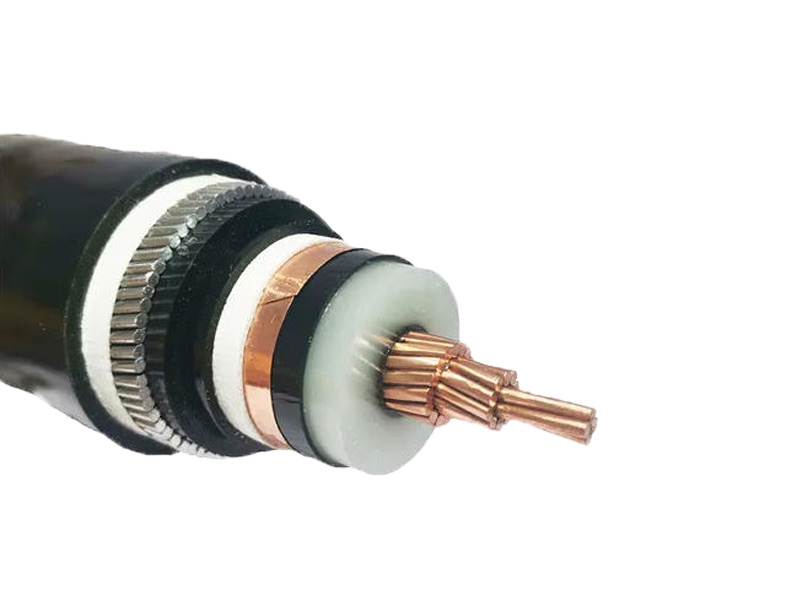

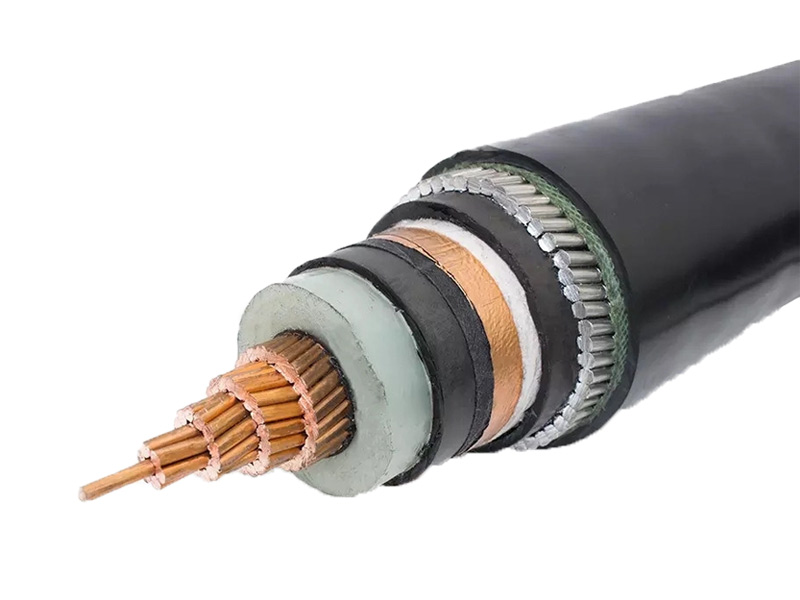

Construction：
1.Conductor：Class 2 Stranded Copper
2.Conductor Screen：Semi-conductive compound
3.Insulation：Cross linked polyethylene （XLPE）
4.Insulation Screen：Semi-conductive compound
5.Metallic Screen：Plain Annealed Copper Tape
6.Inner Sheath：Polyvinyl chloride (PVC)
7.Armoured：Aluminum Wire Armored
8.Outer Sheath：Polyvinyl chloride (PVC)

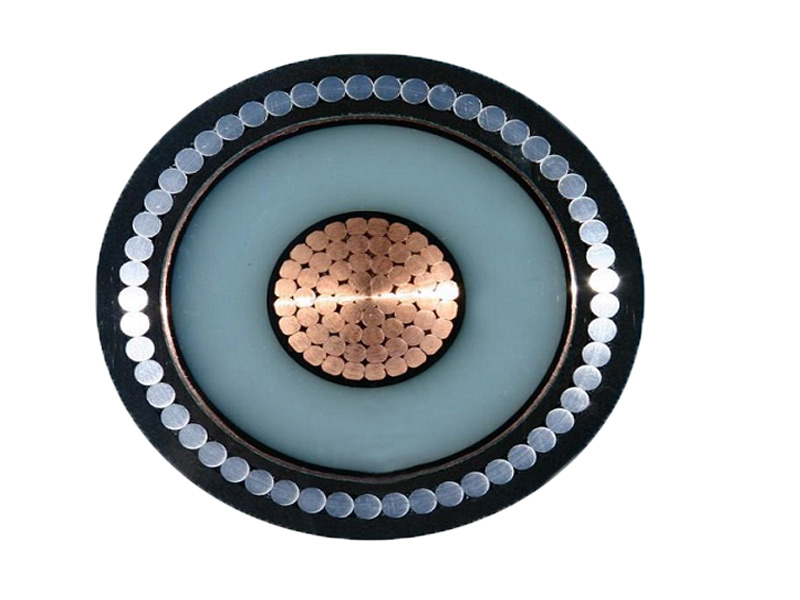

Cross Section：
1 Core：25~800mm2, Different voltage have different data. If you need detailed parameters, please ask us for quotation.
Temperature characteristics:
Conductor operating temperature: -15℃~90℃
Min. temperatrue laying condition: 0℃
Conductor emergency operating temperature: 105℃
Conductor short-circuit operating temperature (5s): 250℃
Color：
Core identification: Nature or according to the customer's request
Outer sheath: Black or according to customer requirements
Packing：
Wooden Drum or Steel Wooden Drum
The packaging length of each roll is based on the quantity or customer's requirements
Product Parameters
| Size | 35kV Cable Data Sheet | Approx. Weight | |||||
| CU Conductor | Insulation | Armor wire diameter | Outer Sheath | Approx. Overall Dia. | |||
| Str. No. | Diameter | Nominal Thickness | Nominal Thickness | ||||
| mm2 | No.s | mm | mm | mm | mm | mm | kg/km |
| 25 | 7 | 6.0 | 9.3 | 2.0 | 2.2 | 39.6 | 1901 |
| 35 | 7 | 7.0 | 9.3 | 2.0 | 2.2 | 40.6 | 2049 |
| 50 | 7 | 8.2 | 9.3 | 2.0 | 2.3 | 42.0 | 2261 |
| 70 | 14 | 9.9 | 9.3 | 2.0 | 2.3 | 43.7 | 2565 |
| 95 | 19 | 11.6 | 9.3 | 2.5 | 2.4 | 46.8 | 3091 |
| 120 | 19 | 13.0 | 9.3 | 2.5 | 2.5 | 48.4 | 3423 |
| 150 | 30 | 14.4 | 9.3 | 2.5 | 2.5 | 49.8 | 3769 |
| 185 | 37 | 16.2 | 9.3 | 2.5 | 2.6 | 52.0 | 4280 |
| 240 | 37 | 18.6 | 9.3 | 2.5 | 2.7 | 54.6 | 4970 |
| 300 | 37 | 20.8 | 9.3 | 2.5 | 2.7 | 56.8 | 5675 |
| 400 | 60 | 23.6 | 9.3 | 2.5 | 2.8 | 60.0 | 6683 |
| 500 | 60 | 26.6 | 9.3 | 2.5 | 2.9 | 63.8 | 7919 |
| 630 | 60 | 30.2 | 9.3 | 2.5 | 3.1 | 68.0 | 9551 |
| 800 | 60 | 34.2 | 9.3 | 2.5 | 3.2 | 72.4 | 11502 |
